How to Root Samsung Galaxy S8+ Snapdragon (V7 Bootloader)

How to Root Samsung Galaxy S8+ Snapdragon Variant

In this guide, I will instruct you on how to root the Samsung Galaxy S8+ Snapdragon variant using the new Safestrap method. This new method will work on any Galaxy S8+ with SM-G955U/U1 model number and running V7 bootloader version.

Recently, we saw the first working root method for the Snapdragon Galaxy S9, S9+, and Note 9, which was brought to us by the Extreme Syndicate team. The same method was then ported to work on the Snapdragon Galaxy Note 8 and the Galaxy S8 by developer jrkruse. This new process is favored not only because it supports devices running the latest V7 bootloader, but was also comparatively easy than the previous ones.

On the other hand, XDA RC/developer jrkruse has found an even shorter and easier method to root the Snapdragon Galaxy S8+. This is different than the one followed by regular Galaxy S8 users, and it doesn’t involve flashing the combination firmware at all. Instead, you can flash the pre-rooted Android Nougat straight away using the Odin Tool.

Further, if you want to, you can install an Android Pie ROM that has the Safestrap recovery pre-installed. But do note that rooting Android Pie is not possible, so the only way you can modify the software is by installing the provided mods via Safestrap recovery.

The developer has offered two different Android Pie Safestrap ROMs, as follows:

  • Debloated Stock ROM with working Samsung Pass, Pay, Secure Folder, enabled Call Recording, Caller ID, Native Hotspot, and support for Multi-user profiles.
  • Debloated Google ROM with pre-installed Google Camera and Dialer apps, working Samsung Pass, Pay, and Secure Folder, with support for Native Hotspot and Multi-user profiles.

How to Root Samsung Galaxy S8+ Snapdragon Variant

Table of Contents

Supported Devices

The following Snapdragon Galaxy S8+ models are supported. If your device has a model number other than the ones mentioned below, then this method will not work on it.

  • SM-G955U
  • SM-G955U1
  • SM-G955W

It doesn’t matter if your phone is running Android 9 Pie, Android Oreo, or Android Nougat firmware. What’s important is that it should have the V7 bootloader version.

To find out your phone’s bootloader version, go to Settings → About phone → Software information and check the information under the ‘Baseband version‘ section. For example, if it says “G955USQS7DTB3”. The “S7” here denotes the bootloader version, which is V7.

Before You Begin

  • All your data stored on the phone will be erased during this process. So, make sure that you have taken a full backup of your important data before you begin with the instructions. If you need it, we also have a detailed guide for this.
  • Charge your Galaxy S8+ to a sufficient battery level. This will prevent the phone from suddenly shutting down during the process.
  • Download the latest Samsung mobile USB drivers from here and install them on your PC.
  • Avoid using USB 3.1/3.0 port for flashing files via Odin. Although it might work, but is also known to cause failures. Using a USB 2.0 port/hub is recommended.

How to Root Galaxy S8+ Snapdragon Variant?

Like I said earlier, this rooting method is extremely easy, especially when compared to what users have to follow for the regular Galaxy S8 or Note 8. I have split the instructions into two different steps so that it’s easier for you to understand what

Step 1: Perform a Factory Reset and Boot Galaxy S8+ into Download Mode

The first step of the rooting process is to perform a factory data reset via the stock recovery and then boot your phone into Download Mode from there. To do this, follow the instructions listed below.

  1. Power off your Galaxy S8+ first.
  2. Hold the Volume Up, Bixby, and Power buttons simultaneously. Then release the Power button and keep holding the rest as soon as the phone turns on.
  3. Your phone should now be in the stock recovery mode.
  4. Use the Volume buttons to select the ‘Wipe data/factory reset‘ option and press the Power button to confirm the selection.

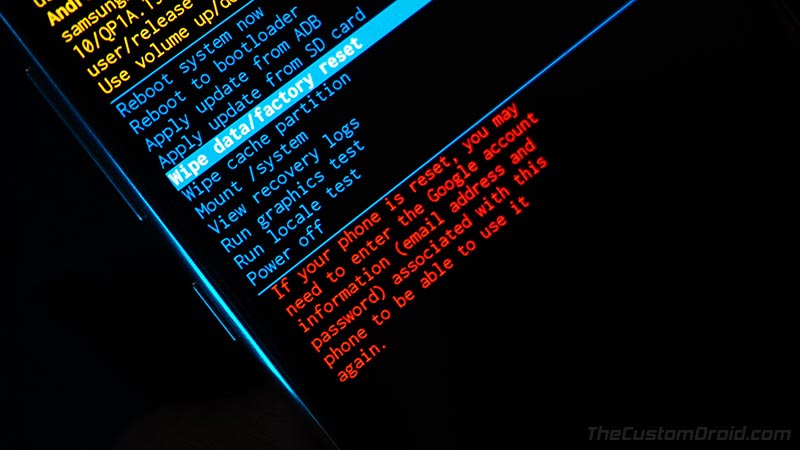

    Perform Factory Reset on Galaxy S8+ Snapdragon via Stock Recovery
  5. When prompted, select ‘Factory data reset‘ to perform a factory reset.
  6. Once done, select the ‘Reboot to Bootloader‘ option to boot your Galaxy S8+ into directly into Download Mode.

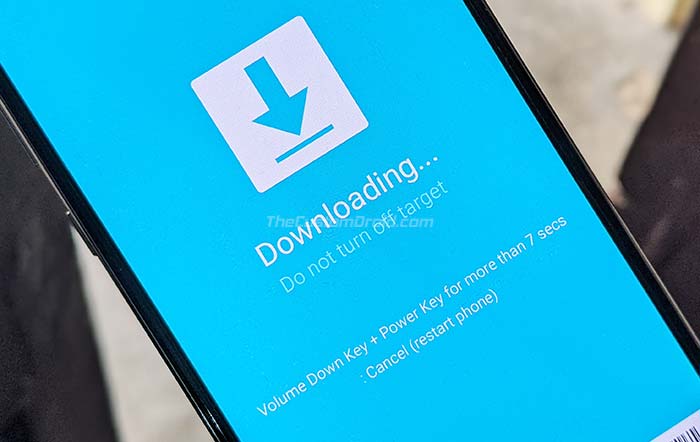

    Enter Download Mode on Galaxy S8+ Snapdragon via Stock Recovery

With your phone in Download Mode, connect it to your PC via a USB cable.

Step 2: Install Pre-Rooted Android Nougat ROM

Now, you are ready to install the Pre-rooted Android Nougat ROM on your Snapdragon Galaxy S8+ via the Odin tool.

  1. Download the Nougat Rescue ROM package to your PC: SM_G955U_RESCUE_ROM_V7.rar
  2. Extract the downloaded RAR file to your PC using an archive utility like 7Zip, WinRAR, etc.
  3. The extracted files should contain the BL and AP firmware files along with the modded Odin v3.13.1 tool by Raymonf.

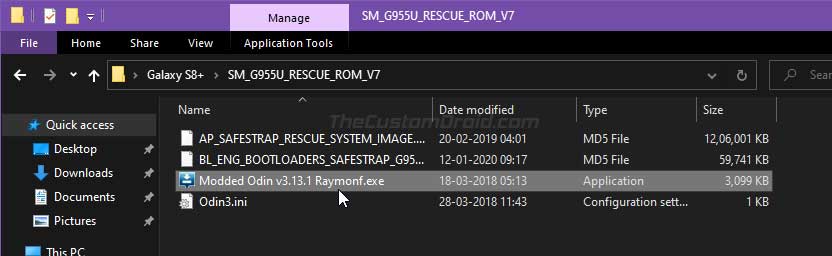

    Galaxy S8+ Snapdragon Pre-Rooted Android Nougat ROM Files
  4. Launch the Odin tool on your Windows PC by double-clicking on the ‘Modded Odin v3.13.1 Raymonf.exe‘ executable file.
  5. The ID:COM port on the top-left of the Odin’s GUI should light up blue and display the COM port to which your Galaxy S8+ is connected.
  6. Click on the ‘BL‘ button and select the extracted ‘BL_ENG_BOOTLOADERS_SAFESTRAP_G955U_V7.tar.md5‘ file in the BL slot.

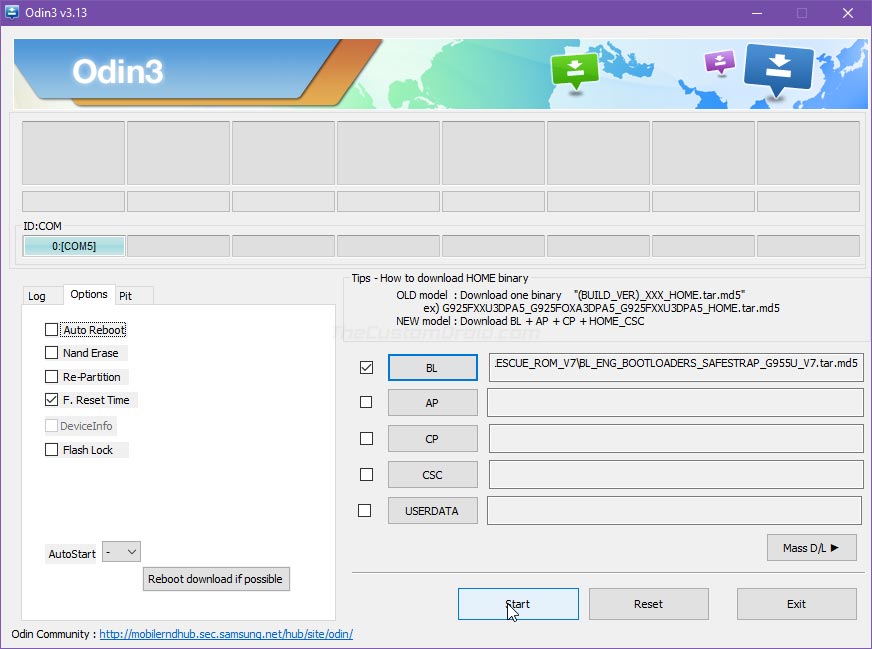

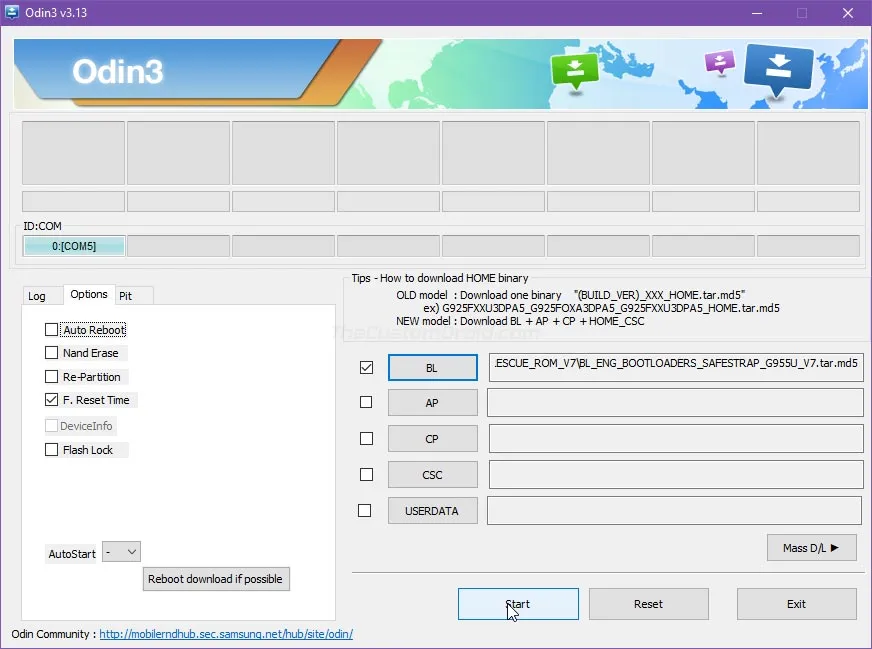

    Flash Android Nougat BL File on Galaxy S8+ Snapdragon
  7. Uncheck ‘Auto Reboot‘ in Odin’s Options menu. This will prevent your phone from automatically rebooting after the flashing process finishes.
  8. Now, click on ‘Start‘ to flash the file to your phone.
  9. Once the file has been flashed, Odin will show a ‘PASS!‘ message. You can close the tool now.
  10. Now, you have to force-reboot your phone into Download Mode. To do this, first, hold the Volume Down and Power buttons together. Then, as soon as the screen goes off, hold the Volume Down, Bixby, and Power button together to enter Download Mode.
  11. Launch the Odin tool again and load the ‘AP_SAFESTRAP_RESCUE_SYSTEM_IMAGE.tar.md5‘ file in the ‘AP‘ slot.
    Flash Pre-Rooted Android Nougat ROM on Galaxy S8+ Snapdragon
  12. Click on ‘Start‘ to flash the pre-rooted Nougat ROM on your Galaxy S8+.
  13. Odin will show the ‘FAIL!‘ message this time and the phone would show that the software update has failed. Don’t worry, this is normal and part of the process.
  14. Now, re-launch the Odin tool, load the ‘BL_ENG_BOOTLOADERS_SAFESTRAP_G955U_V7.tar.md5‘ file in the BL slot, and flash it.

Once the flashing process finishes, your phone will automatically reboot into the pre-rooted Nougat OS and will have Safestrap recovery.

If you’re only looking for gaining root permissions on your Galaxy S8+, then this is all you need to do. But if rooting isn’t your primary concern and you only want to apply modifications to the software, then follow the next step to install the Android Pie Safestrap ROM on your phone.

Step 3: Install Android Pie Safestrap ROM

Like I mentioned earlier, the developer has provided two different Android Pie ROMs that you can flash, either the stock ROM or the Google ROM. To install it, follow the instructions below.

  1. Download the Android Pie Safestrap ROM of your choice:
    1. Stock ROM: SM_G955U_DSL3_SYSTEM.rar
    2. Google ROM: SM_G955U_GOOGLE_DSL3_SYSTEM.rar
  2. Extract the downloaded RAR package to your PC.
  3. The extracted files should include the ROM’s system image and BL firmware file, along with the required version of the Odin tool.

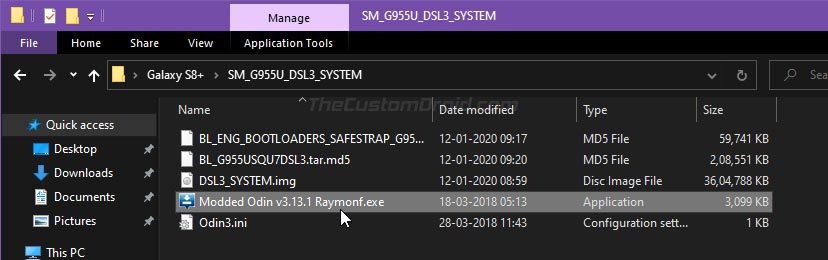

    Galaxy S8+ Snapdragon Android Pie Safestrap ROM Files
  4. Connect your Galaxy S8+ to the PC and transfer the Android Pie system image file (i.e. DSL3_SYSTEM.img) to the phone’s internal storage.
  5. Now reboot your phone and select ‘Recovery‘ on the Safestrap splash screen to boot your phone into Safestrap recovery mode.
  6. Tap on the ‘Install‘ button in Safestrap and select the ‘DSL3_system.img‘ file. When prompted to select the target partition, select ‘System Image‘.

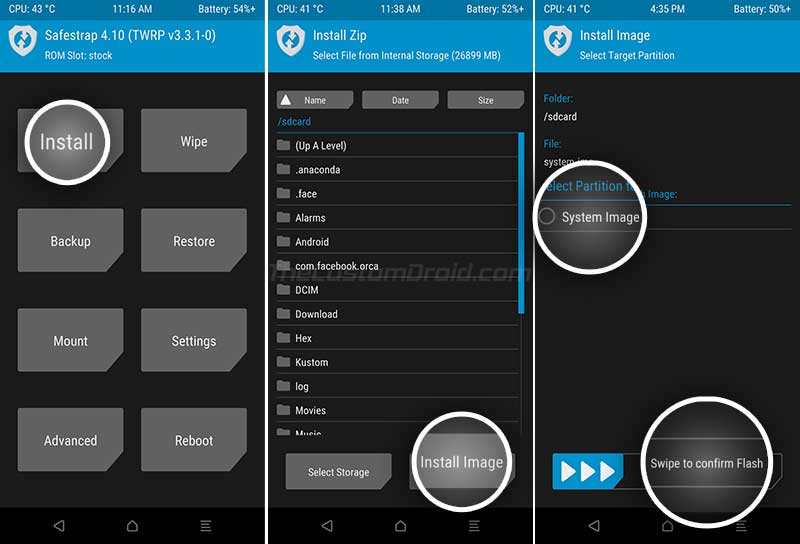

    Install Android Pie System Image on Galaxy S8+ Snapdragon via Safestrap
  7. Swipe the button on the screen to flash the system image and install Android Pie Safestrap ROM on your Galaxy S8+ Snapdragon.
  8. Once the image has been flashed, go to the ‘Reboot‘ menu of Safestrap and tap ‘System‘. As soon as the screen goes off, press and hold the Volume Down, Bixby, and Power buttons simultaneously to boot your phone into Download Mode.
  9. Connect your phone to the PC while it is in Download Mode.
  10. Now, double-click on the ‘Modded Odin v3.13.1 Raymonf.exe‘ file to launch the Odin program on your PC.
  11. Click on the ‘BL‘ button and select the Android Pie BL firmware file (i.e. BL_G955USQU7DSL3.tar.md5) which you extracted initially.
    Flash Android Pie BL File on Galaxy S8+ Snapdragon via Odin
  12. Finally, click the ‘Start’ button to flash the file to your phone.

Once the flashing process finishes, you should see a ‘PASS!‘ message in Odin and your phone will automatically reboot into the system (OS). That’s it, you now have Android Pie ROM with Safestrap recovery installed on your Galaxy S8+ Snapdragon.

Before you leave, take a look at some important information below.

Important Notes:

  • Do not flash any mods that haven’t previously been tested with the setup. You can discuss this with other users over at the original XDA thread (check the source link at the bottom).
  • Developer jrkruse himself has provided some of the flashable mods that you can flash on your phone via Safestrap. You can find them here.
  • To boot your phone into Safestrap recovery after finishing the instructions above, you need to flash the extracted ‘BL_ENG_BOOTLOADERS_SAFESTRAP_G955U_V7.tar.md5’ file via Odin in the ‘BL’ slot.
  • To exit the recovery mode, you can use the ‘Reboot’ menu of Safestrap.

So, this was the guide on how to easily root Galaxy S8+ Snapdragon running V7 bootloader. If you have any questions regarding the method or the instructions, please feel free to ask me. A huge thanks to XDA RC/developer jrkruse for all his contributions to the community and providing his valuable time assisting others.

Source: XDA

Comments

  1. Excellent post. Just rooted my s8plus on Verizon. Works perfectly. Thank you so much for your time.

    1. Yes, you can root it Matt. But make sure that you read more about this method before you proceed. It’s not the traditional rooting method and you still wouldn’t be able to unlock the bootloader. You will also be running Android Nougat to gain root access. You couldn’t run Android Oreo or Pie if you want Root.

      One more thing, you will need to update the phone to the latest V7/V8 bootloader in order to use this method.

    1. Zaryab, the developer has updated the method for V8 bootloader. You can find more details, files, and instructions on this XDA thread.

      I will try and update this tutorial in a few days as well.

    1. Yes, the method now supports V8 bootloader (the one that you have). However, the tutorial needs to be updated. In the meantime, you can refer to the instructions directly provided by the developer on this page.

  2. so now bro i have flasshed the BL_ENG_BOOTLOADERS_SAFESTRAP_G955U_V7.tar.md5’ on my pie…and it just keeps rebooting from the samsung logo to twrp recovery even when i indicate reboot through safestrap same thing nothing changes ..phone doest go past that ..i really need this and another question can i instal a ported rom through this

    1. Dennis, to exit Safestrap, go to the “Reboot” menu in Safestrp (TWRP) and select “Download”. Don’t use “System”, “Power off”, etc.

      As for the ROM, I am afraid there aren’t many options but one, which is the Google Experience ROM. This is provided by the same developer who devised this root method. Check it out on this thread.

  3. i am sorry that i am writting too much but i had an issue where apps werent appeaaring decided to go to recovery mode..i noticed that what i have is the stock recovery …so i flashed my phone and apps were back the issue is that i dont have the safe safe strap recovery installed ,what do i do

    1. Dennis, you’d need to manually enter Safestrap by flashing the “BL_ENG_BOOTLOADERS_SAFESTRAP_G95*U_V*.tar.md5” file (It’s inside the package you downloaded).

      Could you please tell me the bootloader revision of your S8+?

  4. i did follow every step as stated above. Now i have nothing on my phone. There’s no any application i mean i cant turn my wifi on i cant even open a picture nor install apps.. what should i do now? PLEASE HELP

    1. Just download the latest stock firmware using the Frija or Samloader tool. Then follow the instructions on this page to flash the firmware to your Galaxy S8+.

      This will restore your phone back to the regular state.

    1. Hi Alex, apologies for the typo. I have fixed it and omitted G950 with G955U.

  5. Merhabalar ,çok güzel bir rehber olmuş,aylardır aradığım bilgiler bunlar.bravo!
    SM-G955u cihazım var ve bunu deneyeceğim.çok teşekkür ederim.
    şu anda 9.0 pie stok yüklü cihazda,sanırım bunları yapabilirim?

    Hello, it has been a very nice guide, this is the information I have been looking for for months.
    I have SM-G955u device and I will try it. Thank you very much.
    currently on 9.0 pie stock loaded device, i think i can do that?

  6. Bro can wo go to pre rooted 8.0 or 9.0 or with any method can we root 8.0 or 9.0 because i need rooted oreo or pie my device is sm-g955u1 9.0 v7 bootloader

    1. Hi Mehran. I am afraid no. The only way root is possible on Nougat is through an exploit found in the combination firmware by the developers. The exploit was patched with Oreo (and so on Pie), so it can’t be used to root either of them.

    1. Yes, it will. And yes again, it will limit the battery capacity to 80%, that’s a known bug with the combination firmware exploit.

    2. You’re welcome! If you have any further questions, feel free to reach back.

  7. I posted earlier & also emailed you, but my comment didn’t post.

    My phone is a T-Mobile Galaxy S8+ Snapdragon (V7 Bootloader). Will this root work on a T-Mobile phone?
    Also, does this root trip the Knox or reduce the battery capacity? Please let me know! Thanks!

    1. Hi Mark. I have replied to your previous comment. Our CMS directly queues new comments for moderation to prevent any sort of spam.

    2. Thank you for explaining the delay in my comment posting & addressing my concerns!

  8. Thank you for post on “How to root Samsung Galaxy S8+ Snapdragon (V7 Bootloader)”. I noticed that the article doesn’t mention anything about Phone Carriers. My phone is a T-Mobile phone. Will this root procedure & SM_G955U_RESCUE_ROM_V7.rar file work on a T-Mobile phone?

    Also, previous rooting procedures (2017-2018, etc) tripped the Knox & also greatly reduced the battery capacity. Does your rooting method cause any of those issues? Please let me know! Thanks,

    1. Hi Mark. Yes, it will work on your T-Mobile S8+. The carrier does not matter. It’s important however to match the model number, which in this case should be SM-G955U or SM-G955U1.

      About KNOX, it will always be tripped when you flash an unofficial binary through Odin. As for the battery, it is a known issue with all the root methods available for Snapdragon Galaxy devices (sold in the US). The exploit used in the combination firmware limits the device’s charge to 80%. Maybe that’s the reason why you’re seeing a reduced battery life.

      I will make sure to mention carrier compatibility within the post.

      Also, I will make sure to mention that any carrier is supported.

  9. when i try to flash the BL file (step 2) odin says fail and when i try again it gets stucked in SetupConnection and sometimes it says Initialzation.. but then fails, can you help me?
    my phone is an s8+ smg955u t-mobile with snapdragon and V7 bootloader

    1. the same of the post, i tried with other versions but it still doesn’t work

  10. Hi again, Charles. Did you follow everything until step #2?

    One more thing, could you please share the software build number of the firmware that’s currently installed on your phone?

    1. Sorry again I flashed the nougat rom pre rooted,I didnt find the superSU,what I found was flashfire,may be Im dumb(hahaha) on the s8+ section coz what I wanted was root,I didnt use pie with safetrap.Thank u man

    2. After finishing up till step #2, you should have root, along with FlashFire installed.

  11. So sir will this work for my sm g955u with match security patch on android pie,pliz advice

    1. Sir I did exactly as its stated on I managed to install the rom and booted the phone but with problems.
      1.No network nor wfi
      2.On the app drawer the only apps I got are settings which only crashes,no playstore whatsever,call button missing.
      3.I managed to flash stock rom now my signal plus imei is back but still I want to root it,mine is sm g955u tmobile,any suggestion man will appriciated,thank u.

    2. Install GApps Stock via SafeStrap. Ignore the warnings.
      On reboot, I enter the SSID manually and got WIFI back in working order
